RENOGY 1000W Pure Sine Wave Inverter Charger | RNG-INVT-1000-12V-C

Name: 1000W Pure Sine Wave Inverter Charger
SKU: 590824

DESCRIPTION:

The Renogy 1000W Pure Sine Wave Inverter Charger is the perfect addition to any RV or trailer solar power system. Not only will it convert DC power to AC, but it will also keep the battery bank charged with solar during the day and convert to the inverter charger with a generator or shore power at night. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics, without any interference. Never feel hindered on your journey, let the 1000W Pure Sine Wave Inverter Charger keep you charged!

Key Features:

Surge ratings of 2000W

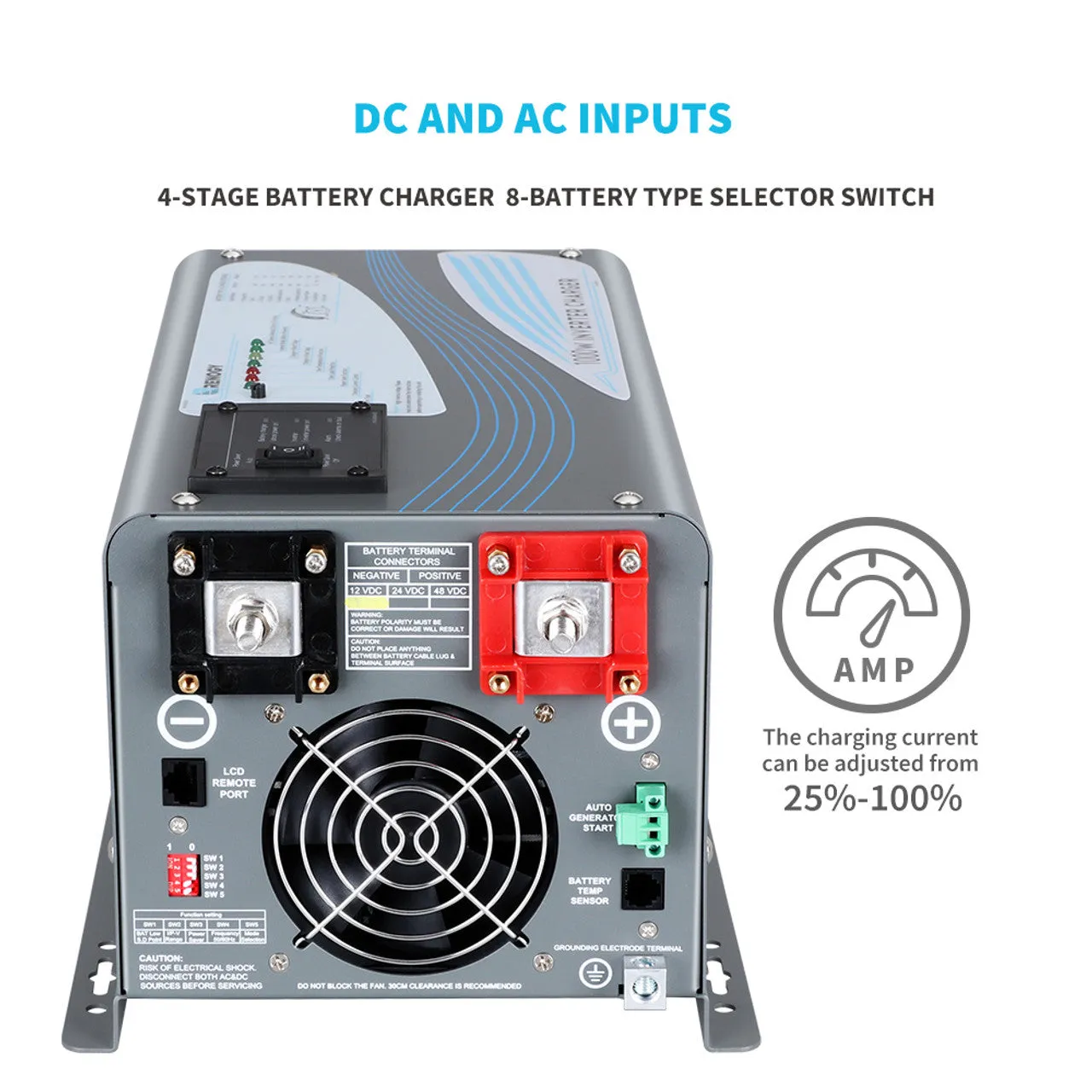

DC and AC inputs

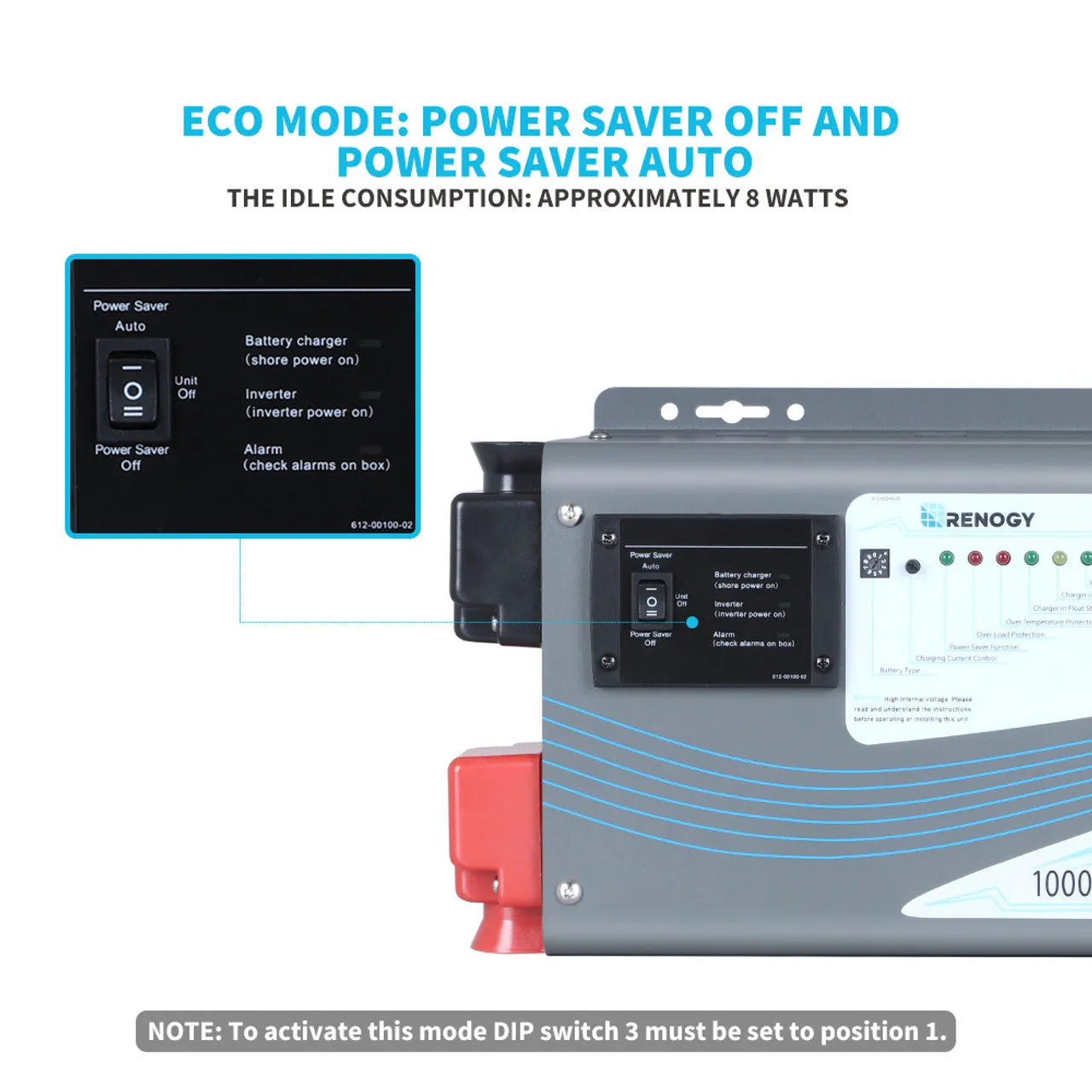

Power Saving Mode
4 Stage Battery Charger

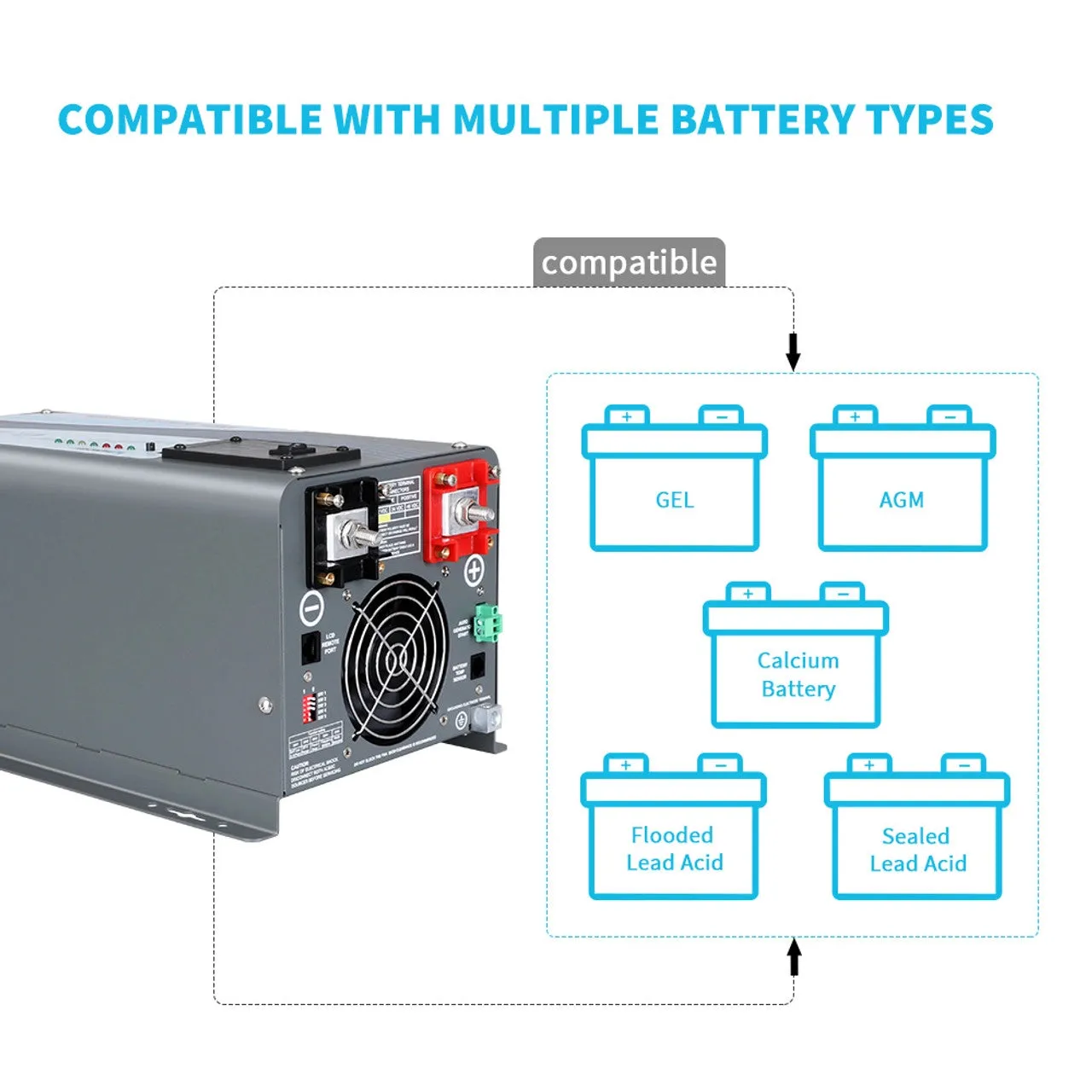

8 Pre-Set Battery Voltages
Automatic Generator Start Option

Specifications:

GENERAL
Nominal Voltage:120 VAC	Low Voltage Trip:90 ± 4%
Low Voltage Re-engage:100V ± 4%	High Voltage Trip:140V ± 4%
High Voltage Re-engage:135V ± 4%	Max AC Input Voltage:150 VAC
Nominal Input Frequency:50Hz or 60Hz (Auto Detect)	Low Frequency Trip:47Hz for 50Hz
High Frequency Trip:55Hz for 50Hz	Output Waveform:Bypass Mode
Overload Protection:Circuit Breaker	Short Circuit Protection:Circuit Breaker
Transfer Switch Rating: 10A	Efficiency on Line Transfer Mode:95%
Line Transfer Time:10ms	Bypass Breaker Rating:10A
Dimensions: 15x8.5x7 Inches	Weight: 39.68lbs
Inverter charger does not include the inverter cables

INVERTER CHARGER SPECIFICATION OUTPUT
Output Wave Form: Pure Sine Wave	Output Continuous Watts:1000W
Continuous Power VA:1000W	Power Factor:0.9-1.0
Nominal Output Voltage RMS:120VAC	Output Voltage Regulation:± 10% RMS
Output Frequency:50Hz ± 0.3Hz	Nominal Efficiency: >88%
Surge Ratings: 2000W	Short Circuit Protection: Yes, fault after 1 second
