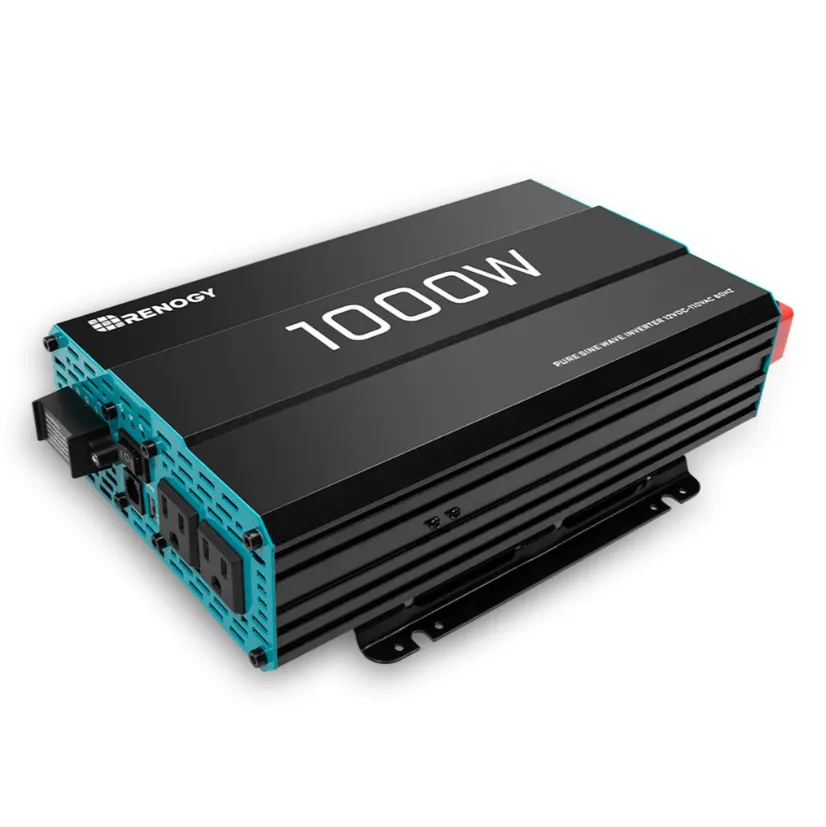

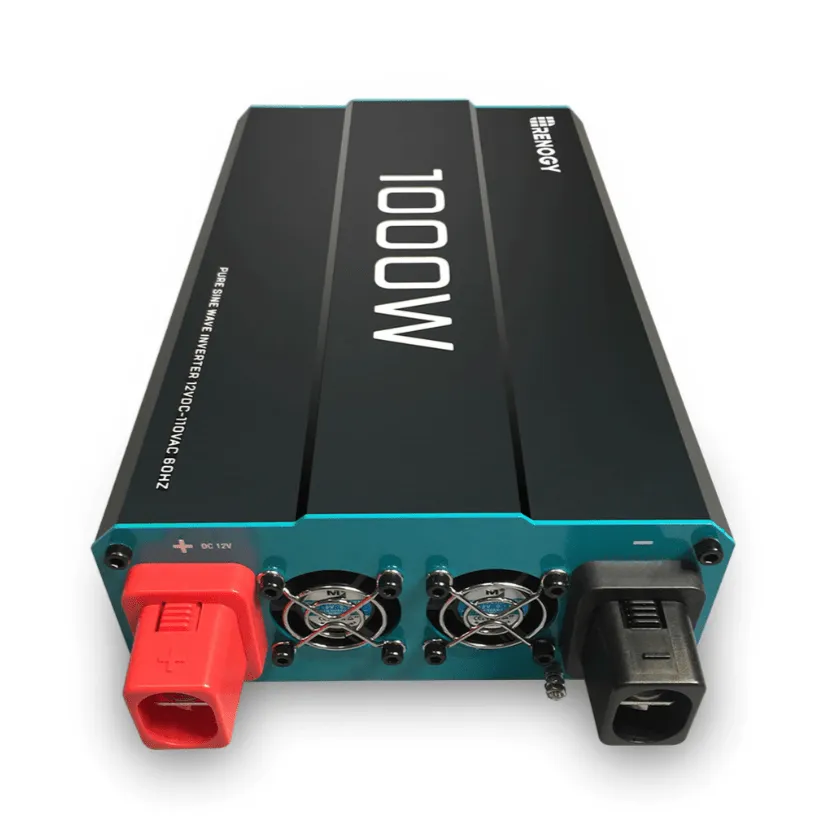

1000W 12V Pure Sine Wave Inverter | RNG-INVT-1000-12V-P2
The Renogy 1000W Pure Sine Wave Power Inverter is a high-quality solar accessory that is perfect for off-grid systems, including cabins and tiny homes. A power inverter is an electrical device that transforms the DC power stored in batteries into standard household AC power for consumer electronic needs.
As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to run everyday electronics.
1000 Watt 12V Pure Sine Wave Inverter Benefits:
Safe
- Optimized for 12 VDC system voltage.
- Offers high quality waveform with little harmonic distortion.
- Overload protection for both DC input and AC output to prevent damage to the components and the unit.
- Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.

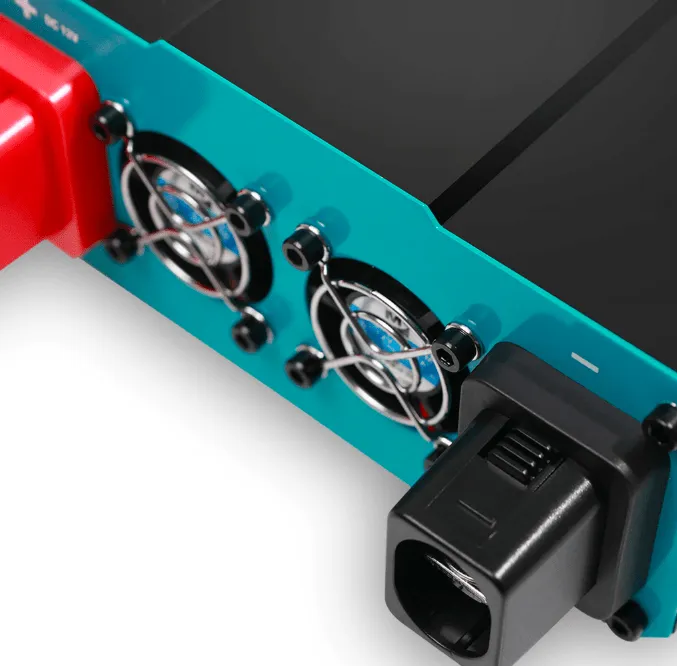

- High-speed ventilation fans to help keep the inverter running at a low temperature.
- Ground-fault circuit interrupter (GFCI) protection

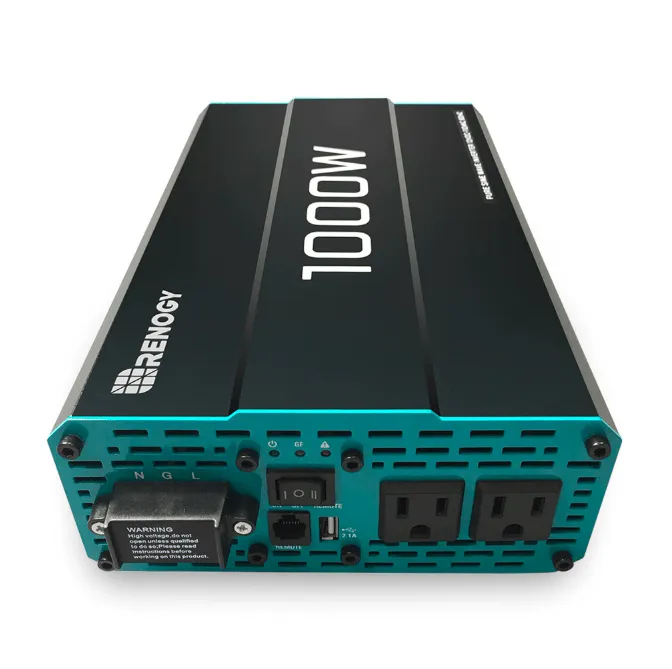

- ETL Listed with Built-in 5V/2.1A USB port,and AC Hardwire Port. 4AWG Cables and Wired Remote Included
Quiet
- No static or humming noises.
Renogy 1000W 12V Pure Sine Wave Inverter Specifications:
| 1000W 12V PURE SINE WAVE INVERTER | |
|---|---|
| Continuous Power: 1000W | Surge Power: 2000W |
| AC Output Voltage Range : 115VAC | Output Frequency (Nominal): 60 Hz |
| Output Waveform: Pure Sine Wave | Efficiency: > 90% |
| Operating Temp: -4°F - 158°F | THD: < 3% |
| No Load Current Draw: < 1A | Dimensions: 13.0 x 7.0x 3.0 In |
| Weight: 6 lbs. |
| 4AWG INVERTER CABLES (A PAIR) | |
|---|---|
| AWG: 4 (3 FT) |
MINIMUM 12V LITHIUM BATTERY BANK SIZING
The following are the minimum battery quantities to operate these power inverters. This is ONLY for 12V applications.
| BATTERY BANK QTY/ INVERTER SIZE | 50AH | 100AH | 170AH |
|---|---|---|---|
| 700W | 1 | 1 | 1 |
| 1000W | 2 | 1 | 1 |
| 2000W | 4 | 2 | 1 |
| 3000W | 6 | 3 | 2 |
What comes with your order?:
- 1 x 1000 Watt Renogy 12V Pure Sine Wave Power Inverter

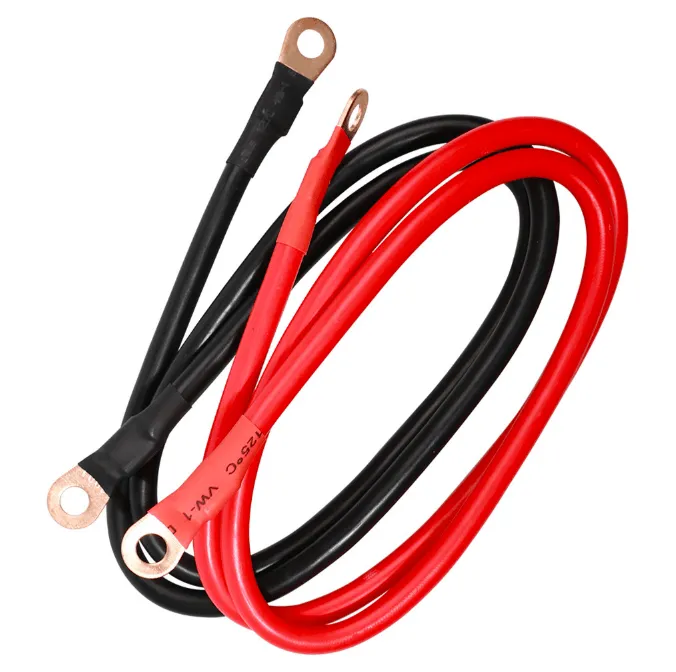

- 1 x Inverter Cables

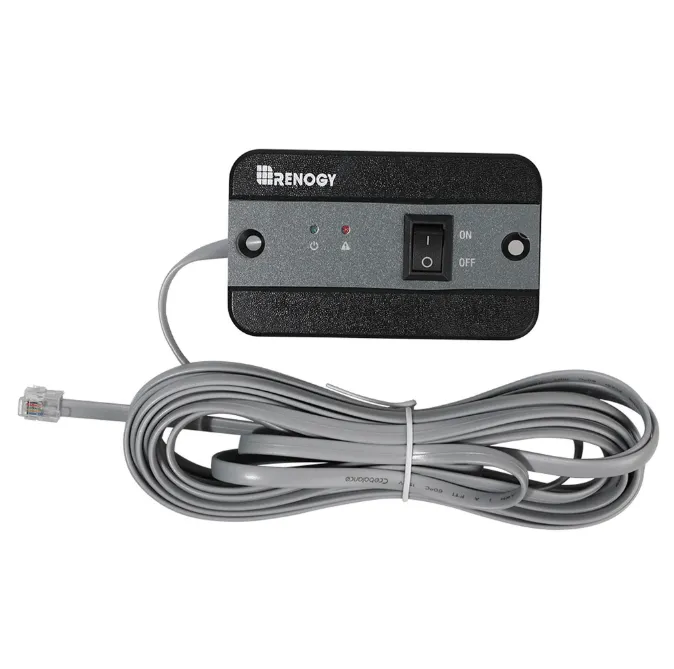

- 1 x Inverter Remote Control
- Free Shipping!
