Pre-programmed 199 Channels
Built-in Display
Power Output 500mW License Free / 2W Licenced
Tones 52 CTCSS / 214 DCS
Clear Loud Audio
Durable Thin Casing, Compact & Lightweight
Long Battery Life & Low Battery Alert
External Microphone / Speaker Jack
Programmable Functions via PC (Optional):
Channels, Frequencies (446 & 464MHz)
(1 - 8 , 1a - 5a) & Tones
Squelch Levels 0 - 9
Time Out Timer 1 - 7 minutes
VOX per channel,
4 Sensitivity Levels, Delay 1 - 4s
Key Lock, Roger Beep
Display Level & Duration
Auto Power Off, 1 - 15 Hours
Scanning all Channels with Priority
Approved by ICASA
1 year limited warranty
IDEAL for General use, Warehouses, Outdoors, Hotels, Events & Medium Duty use.
Range: (terrain dependent):
Indoors: 600m-1.2km
Outdoors: 2-6km
Elevated line-of-sight: 10-30km


UHF 446 & 464MHz on 0.5W (License Free)
400 - 470MHz on 2W (License required)

CHARGING:

Direct Plug-in USB

Desktop Charger Stand from USB Mains Adaptor
Red LED: Charging Mode, Green LED: Full
Charge time: 3 Hrs
Operating time (Average) on 0.5W: 20 hrs on 5:5:90 duty cycle


Compatible to all license-free radios, Check factory Channel settings to link
446 MHz (8 Freq.) & 464 MHz (5 Freq.):
Zartek TX-8, ZA-758, ZA-758, ZA-725, ZA-705, ZA-708, COM8 & Pro8 Radio (446 MHz)
Zartek Pro5 & ZA-200 Radio (Model# 21-1860AF) (464 MHz)

BOX INCLUDED ITEMS:

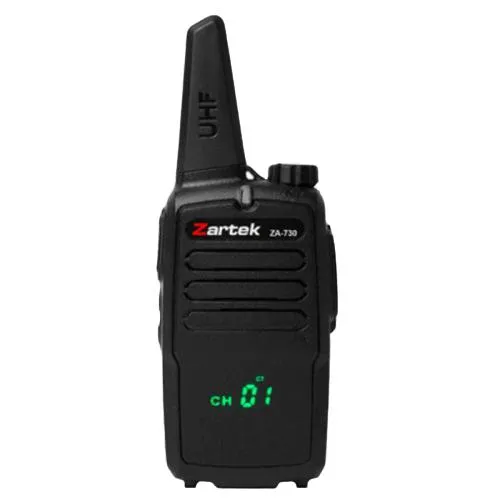

1 x Handheld UHF FM Transceiver
1 x Desktop USB Mains Charger
1 x Li-ion Battery Pack 1000mAH
1 x Belt Clip Case
1 x Lanyard
Users Manual
